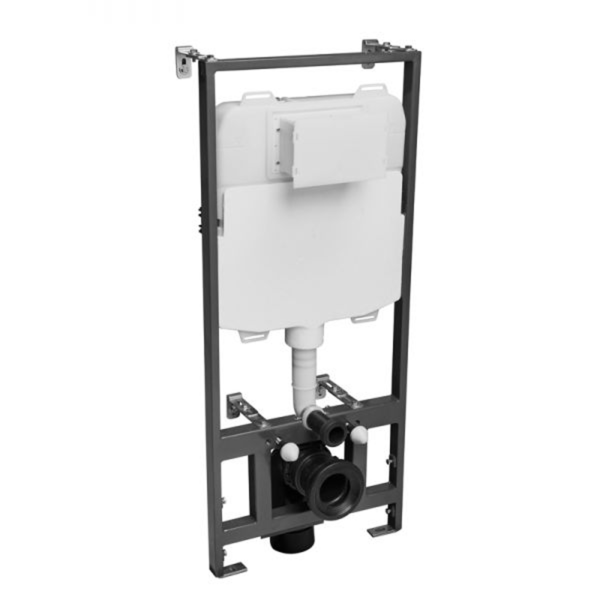

Vortex Wall Hung Frame 1.17m (Includes Cistern)

This wall hung frame is suitable for in-wall applications. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation.

The 1.17M wall hung frame has an adjustable depth 140 - 200mm and has adjustable height legs (200mm adjustment), the frame features front access and push plate position. The wall hung frame has a 0.2-10.0bar working pressure range. The mimimum depth for 'straight out' waste pipe routings is 110mm.
